01
KKK part numbers can be found on a very distinctive blue plate which is riveted onto the compressor housing.
Back to Turbo Finder
Identification Guide
KKK Turbos
German-engineered turbochargers with distinctive blue identification plates, known for quality and performance.
How to Find the Number
Part Number Details
02
The part number will be on the bottom row of numbers on the plate. An example of this would be 5304-970-0023. They also come in an abbreviated style such as KP04-0055 or BV04-023.
03
Look for the name plate of the turbo. In the old series like 3LD, 4LF you can usually find the identification name plate on the bearing housing of the turbo or on the compressor housing, held by 2 screws. Although in the K series the name plate usually appears on the compressor housing, and in the new series KP and BV the identification name plate only appears in the compressor housing.
04
Once you find the name plate there are several possibilities. In the name plate appears the 3K part number, usually directly after the 'p/n' or 'part number' inscription, which already identifies the turbo for us.
05
In some of the K0 and KP the part numbers appear abbreviated, see the examples below: K03-011 = 5303-988-0011, K031-014 = 5303-988-0014, KP31-002 = 5431-988-0002, KP35-000 = 5435-988-0000, KP39-007 = 5439-988-0007.
Data Plate Reference
What to Check

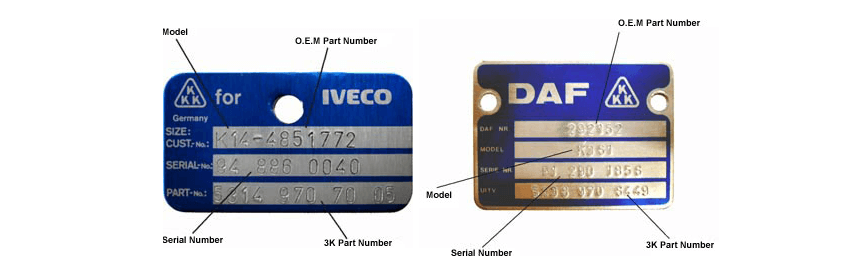

The legacy Ace Turbo guide used manufacturer data plate examples to show exactly where the identifying number normally appears. Use the image as a quick visual reference, then match the number format against the notes above.
Need a Hand?
If you have trouble finding the correct turbo number after checking this guide, call us. Ace Turbo can identify the unit from your registration number or by asking a few simple vehicle questions.
